QIDI TECH PLUS4 3D Printer, Speed up to 600 mm/s, Printing Temperature up to 370°C
€809
€1,155
Save 30%Tax excluded
BRAND: Marque : QIDI
EASE OF PAYMENT, 4X
EXPRESS SHIPPING IN 4 DAYS: FREE
EUROPE DELIVERY: WITHOUT TAX ON ARRIVAL GUARANTEED
day
hour
min
sec
The advantages of the QIDI Plus4

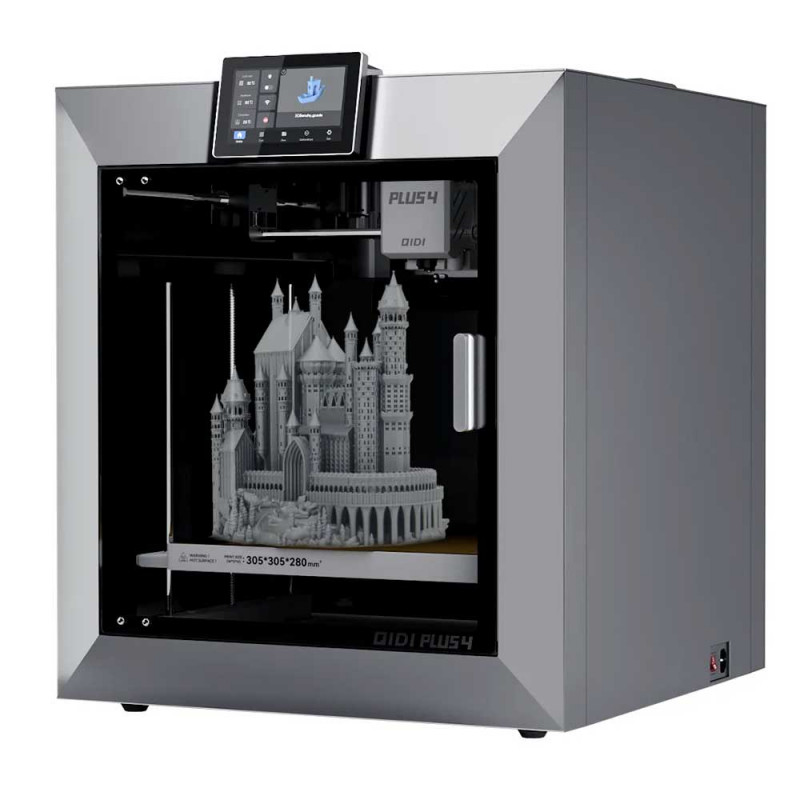

Meet the QIDI Plus4, CoreXY's flagship 3D printer, equipped with an upgraded active build chamber heater, reaching 65°C in just 8 minutes.With its 400 W heating element, it ensures a rapid rise in temperature and uniform distribution thanks to its air circulation fan.
Its new bimetallic hotend with a 0.4mm hardened steel nozzle can now reach 370°C, ideal for high temperature filaments like nylon-carbon or PPS-CF.No need to change nozzles or hotends anymore.
- Fast printing up to 600 mm/s with an acceleration of 20,000 mm/s²
- CoreXY construction (plug & play)
- Automatic belt tensioning
- Fully automatic leveling
- 5" touch screen (800 x 480)
- Active heating of the construction space up to 65°C
- Factory pre-installed clipper (resonance compensation included)
- Integrated activated carbon filter
- Integrated 1080p camera
- Multi-color system support
305 x 305 x 280mm build volume, 10mm guide rails, hardened steel direct drive extruder
The build space size of the Plus series has been increased to 305 x 305 x 280 mm.10mm guide rails and 6mm thick print bed with PEI spring steel plate provide an enhanced experience.The hardened steel of the direct drive extruder gears and automatic filament cutter feature make it easy to use.
The QIDI Plus4 presents both technical and aesthetic improvements.With improved active heating, a revised hotend and an expanded build space, it combines performance and elegance.If the print quality is up to par, the QIDI Plus4 could be a real leap forward for QIDI, especially with the custom Klipper software integrating seamlessly with the Orca slicer.
QiDi Plus 4 - Excellence in printing
Every detail is made with care and precision.
Highlights of this development
Improved print head performance
The nozzle now reaches 370°C for high temperature prints.
Second generation bimetallic hotend (80W) for advanced filament handling.
Active room heating
- 400W ultra-high heating efficiency
- Heating the chamber to 65°C in 8 minutes
- Optimized airflow design
- Perfectly balanced chamber temperature thanks to a powerful turbojet
Complete system upgrade
- Control from the device of your choice
- Using the latest Klipper VO.12 Open Source
- New Ul and software features
Upgrading the machine drive system
Two independent motors, linear shafts and 10mm screws provide a quality experience.
Upgrade to 6mm aluminum bed for improved flatness.
| General | Brand: QIDI TECH Type: 3D printer Model: PLUS4 Color: Silver |
| Specification | Print size (L x D x H): 305 x 305 x 280 mm XY structure: XY core ZA axis: dual independent worm motors, linear shafts and 10mm screws Print head temperature: ≤370℃ Extruder gear: hardened steel gears for direct extrusion Nozzle: Bimetallic nozzle Nozzle Diameter: 0.4mm (0.2/0.6/0.8mm optional) Filament diameter: 1.75 mm Print platform: 6mm aluminum substrate heated bed Printing plate: double-sided textured PEI plate Heated bed temperature: ≤120℃ Maximum tool head speed: 600 mm/s Acceleration: ≤20000mm/s^2 Operating system: Windows, MacOS, Linux Auto-leveling: hands-free auto-leveling Auxiliary cooling fan: Yes Room circulation fan: Yes (with activated carbon air filter) Chamber temperature (PTC heating): 2nd generation up to 65°C Independent chamber heating Supported filament: PLA, ABS, ASA, PETG, TPU, PA, PC, carbon fiber/glass reinforced polymer, etc. Filament cutter: Yes Filament entanglement detection: Yes End of filament sensor: Yes Entry formatting: Yes Recovery after power loss: Yes Voltage: 100-240 VAC, 50/60 Hz Rated power: 450 W + 400 W (room heating) Display screen: 5 inch 800*480 touch screen Storage: 32 GB EMMC USB key and USB 2.0 Camera: Low frame rate camera (up to 1080P) Timelapse support Connectivity: 2.4G Wi-Fi/Ethernet/USB Slicer: QIDI Studio and other third-party software, such as Orca, PrusaSlicer, etc. File formats for decoupage: STL, OBJ, 3MF, STEP, STP |
| Weight and height | Product weight: 30 kg Package weight: 32 kg Product size (L x W x H): 50.5 x 48.7 x 55 cm Package dimensions (L x W x H): 58 x 60 x 65 cm |
| Package contents | 1 x 3D printer 1 x filament extender holder 1 x Expansion Bracket Fixing Block 1 x filament spool holder 1 x support cover 1 x touch screen 1 x door handle 1 x power cord 1 x Ethernet cable 1 x H1.3 Allen key 1 x Allen key H1.5 1 x H2 Allen key 1 x H2.5 Allen key 1 x H3 Allen key 1 7mm wrench 1 x flat head screwdriver 1 x scraper 1 x glue stick 1 x Spare Parts Kit 1 USB 2.0 key 1 x User Manual |
